BIMU INSERT SYSTEM

Ground inserts, special inserts, ISO inserts, modular tool system, insert holders – also with internal coolant, turning tools for backworking and much more.

OUR PRODUCT LINE OF BIMU INSERT SYSTEM

Our extensive range of inserts and accessories offers everything you need for the production of your turned parts. Benefit from our diversified portfolio of inserts for CNC swiss type lathes, fixed head automatic lathes, multi-spindle lathes and rotary transfer machines.

Cut off diameter: 8 mm
Turning diameter: 2 mm

Cut off diameter: 20 mm
Turning diameter: 5 mm

Cut off diameter: 8 mm
Turning diameter: 2 mm

Cut off diameter: 18 mm
Turning diameter: 5 mm

Cut off diameter: 18 mm
Turning diameter: 3,5 mm

Cut off diameter: 20 mm
Turning diameter: 6 mm

Cut off diameter: 32 mm
Turning diameter: –

Cut off diameter: –
Turning diameter: 3 mm

Cut off diameter:
Insert 2mm: 26 mm
Insert 3mm: 42 mm

Cut off diameter: 16 mm
Turning diameter: 6 mm

BIMU ISO line Wendeschneidplatten

Ideal for Aluminium and Titanium
with edgeradius from 0,05

Special geometries according
to your drawing

Ideal for cutting off
Plastic and clear PEEK

Cut off diameter: 20 mm
Turning diameter: –

PKD bestückte Wendeschneidplatten

In various Geometries available
or according to your Requirements

Blank to grind yourself with
two available cutting edges

Two available centre points
with each 60° / 90° or 120°

Modular
tool system

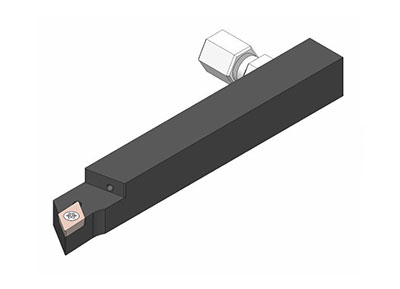

Werkzeughalter für Wendeschneidplatten mit Innenkühlung

For ISO- or BIMU
insert systems

Werkzeughalter für Wendeschneidplatten mit Rundschaft

For ISO- or BIMU
insert systems

OUR CATALOGUE BIMU INSERT SYSTEM

You are also welcome to browse through our catalogues. The brochures for clamping tools, cutting tools, holders for cutting tools, Bimu insert system and machine accessories for the turned parts industry are available for download.

GO TO CATALOGUES
